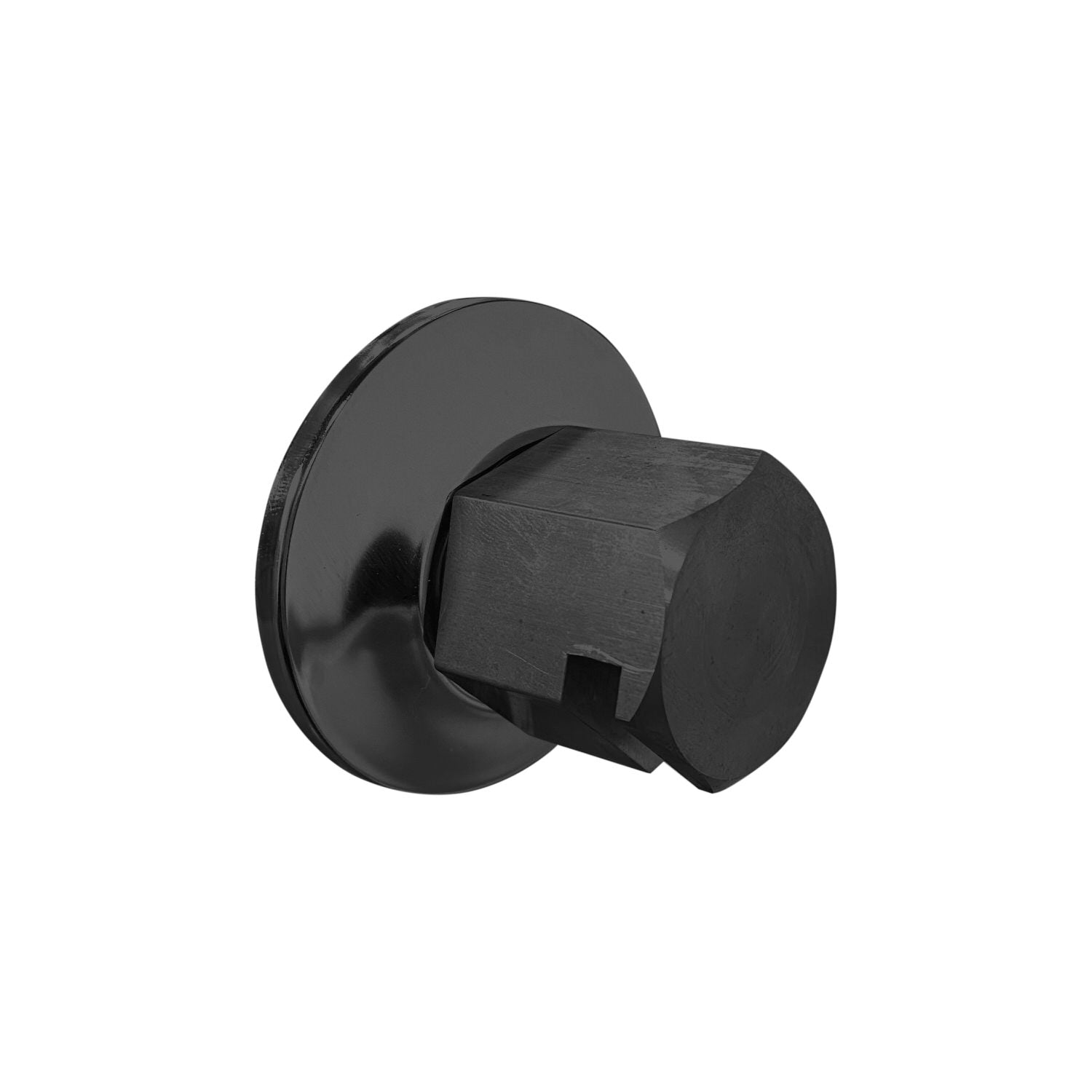

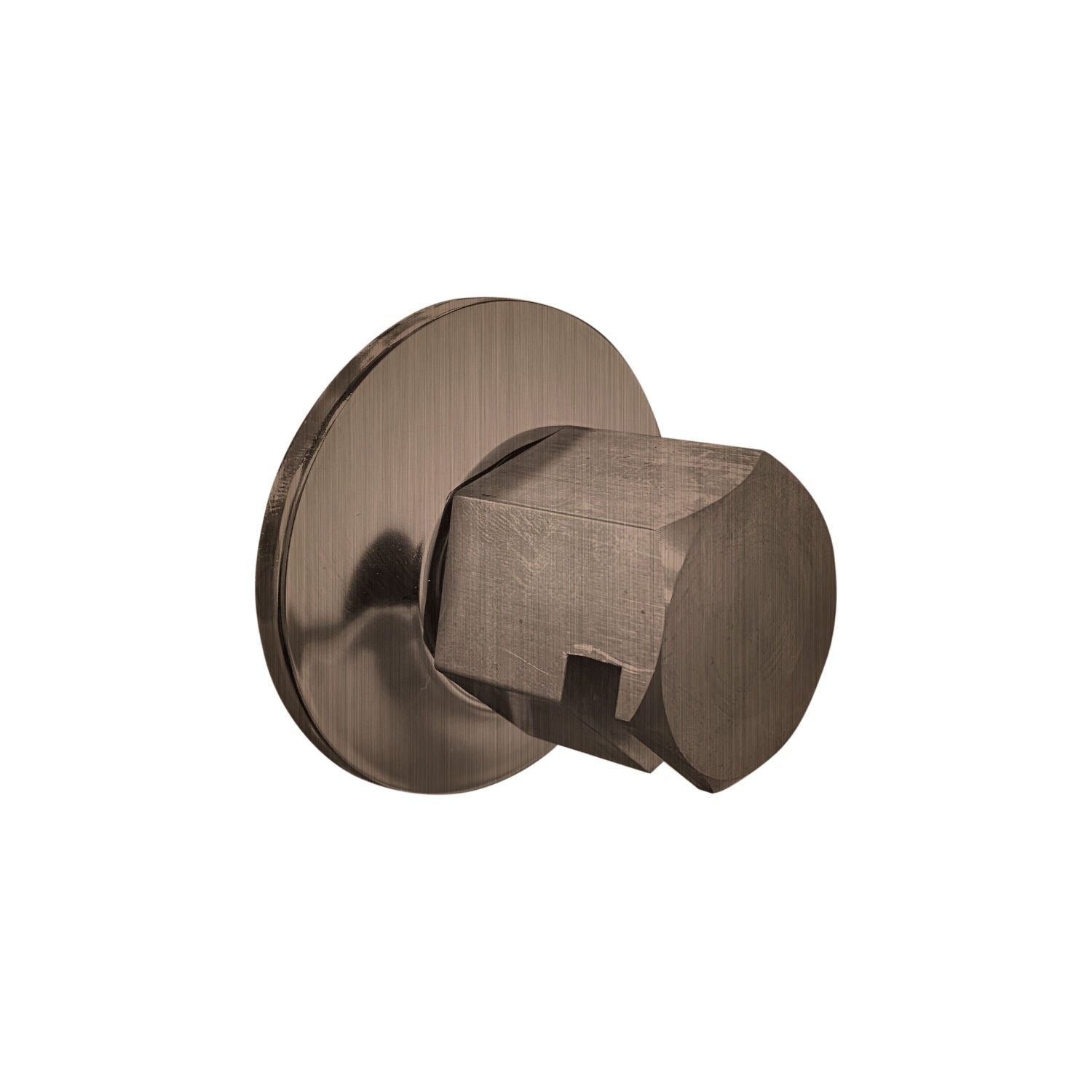

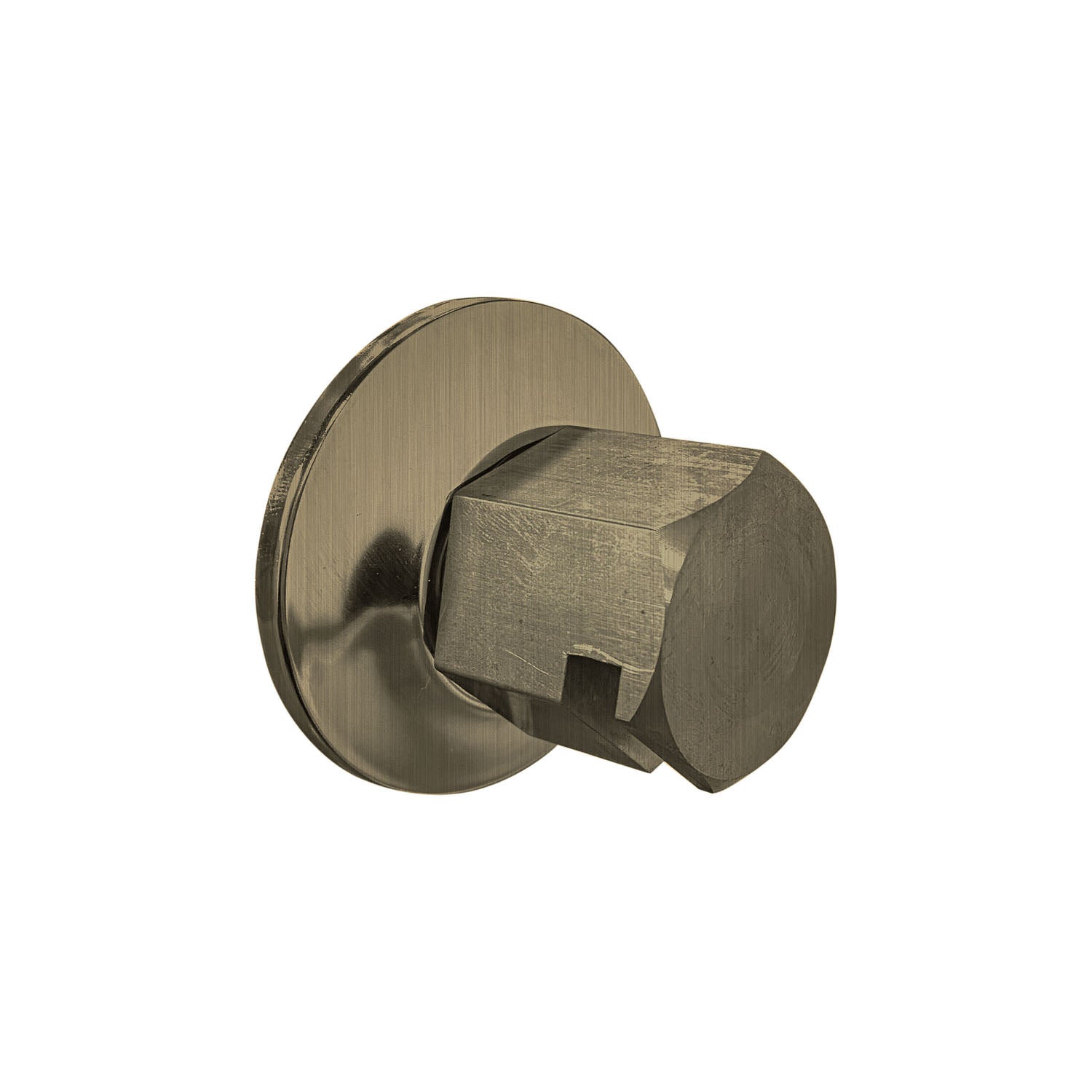

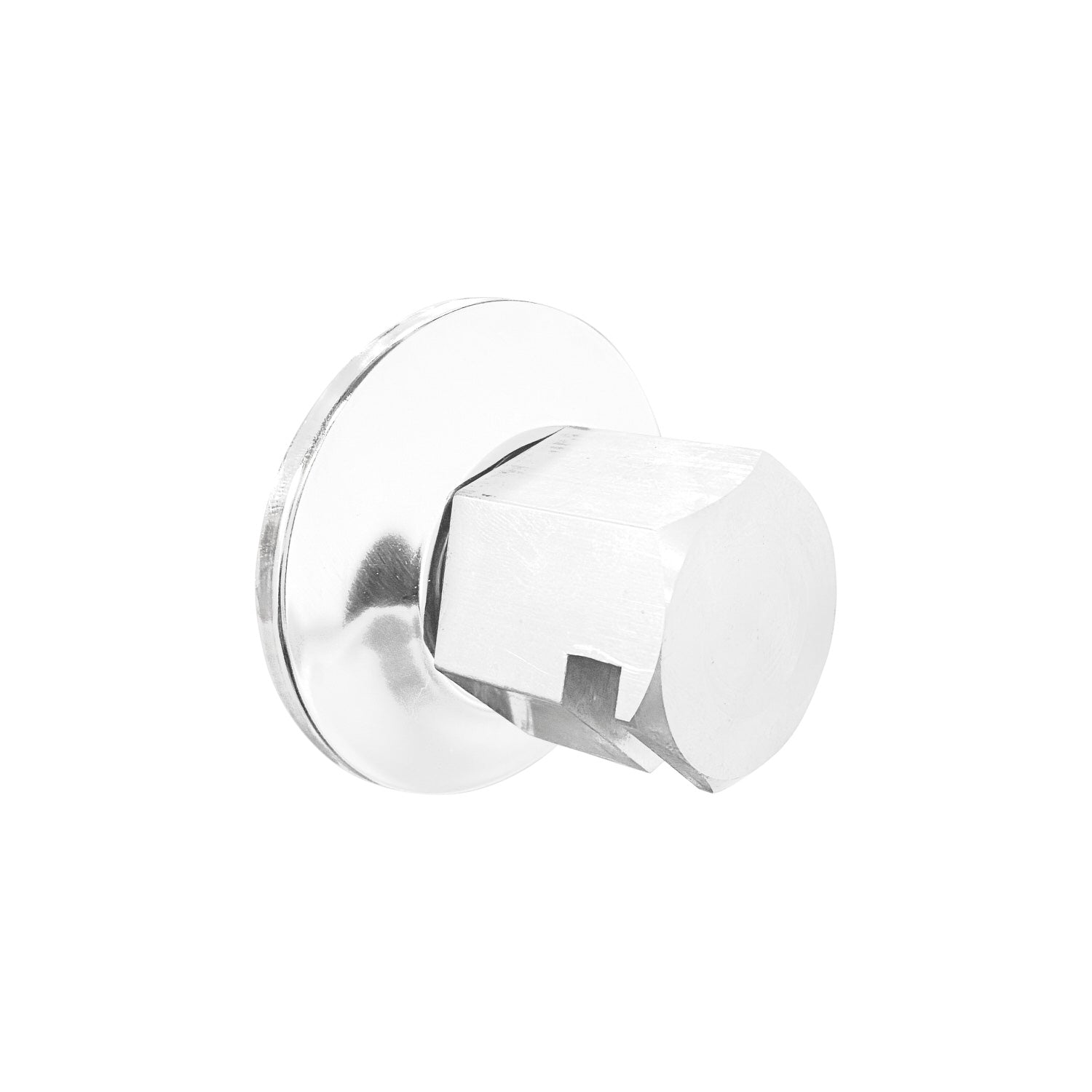

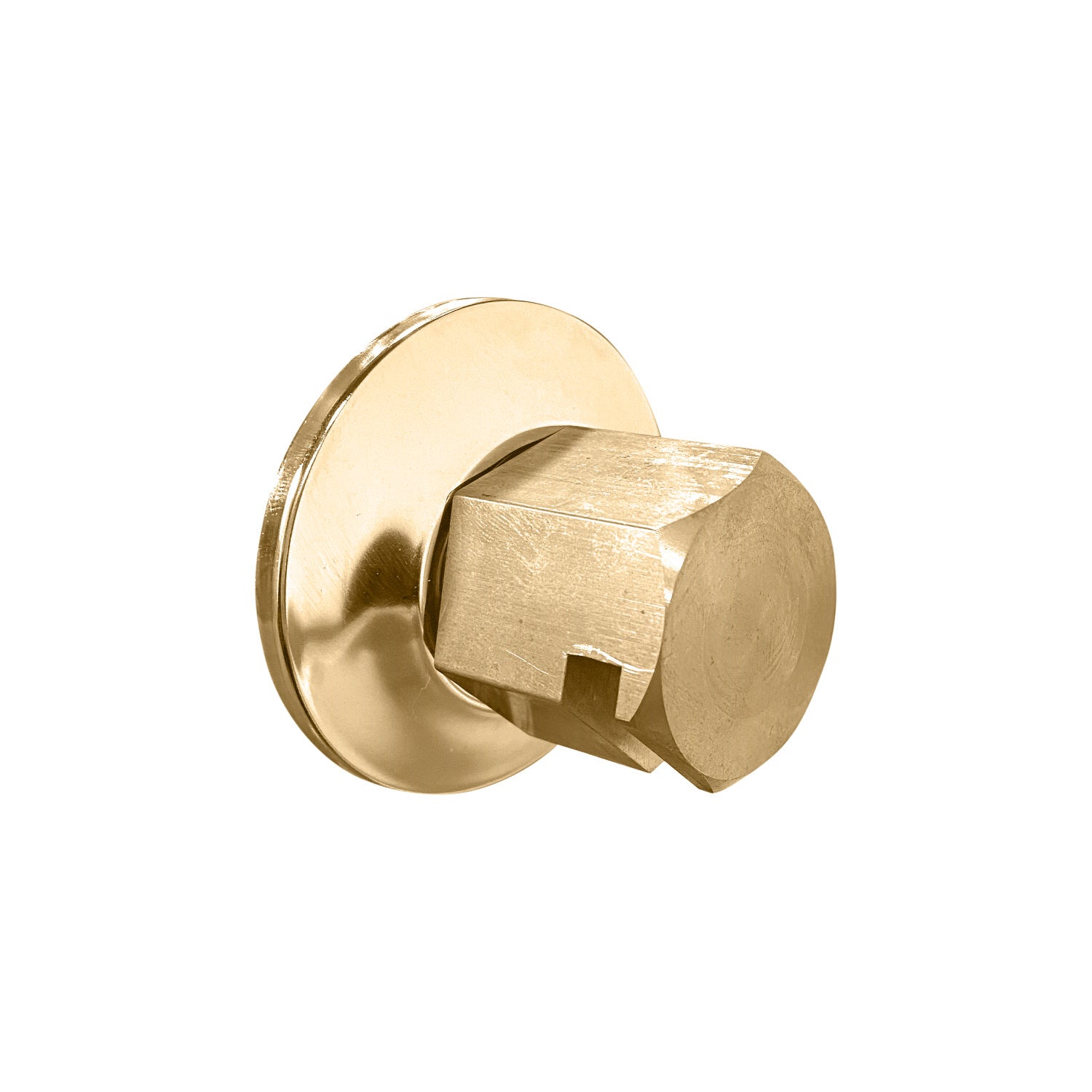

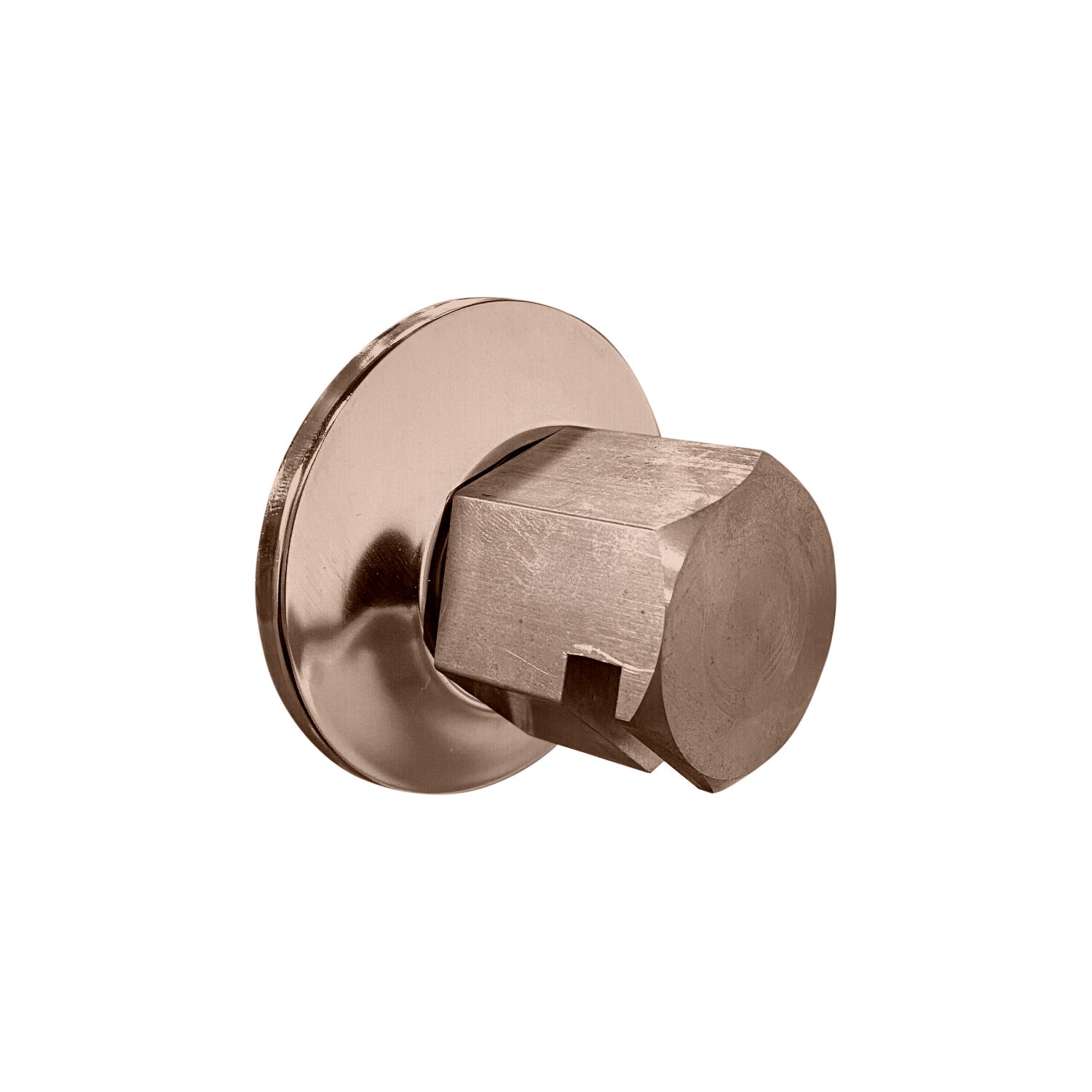

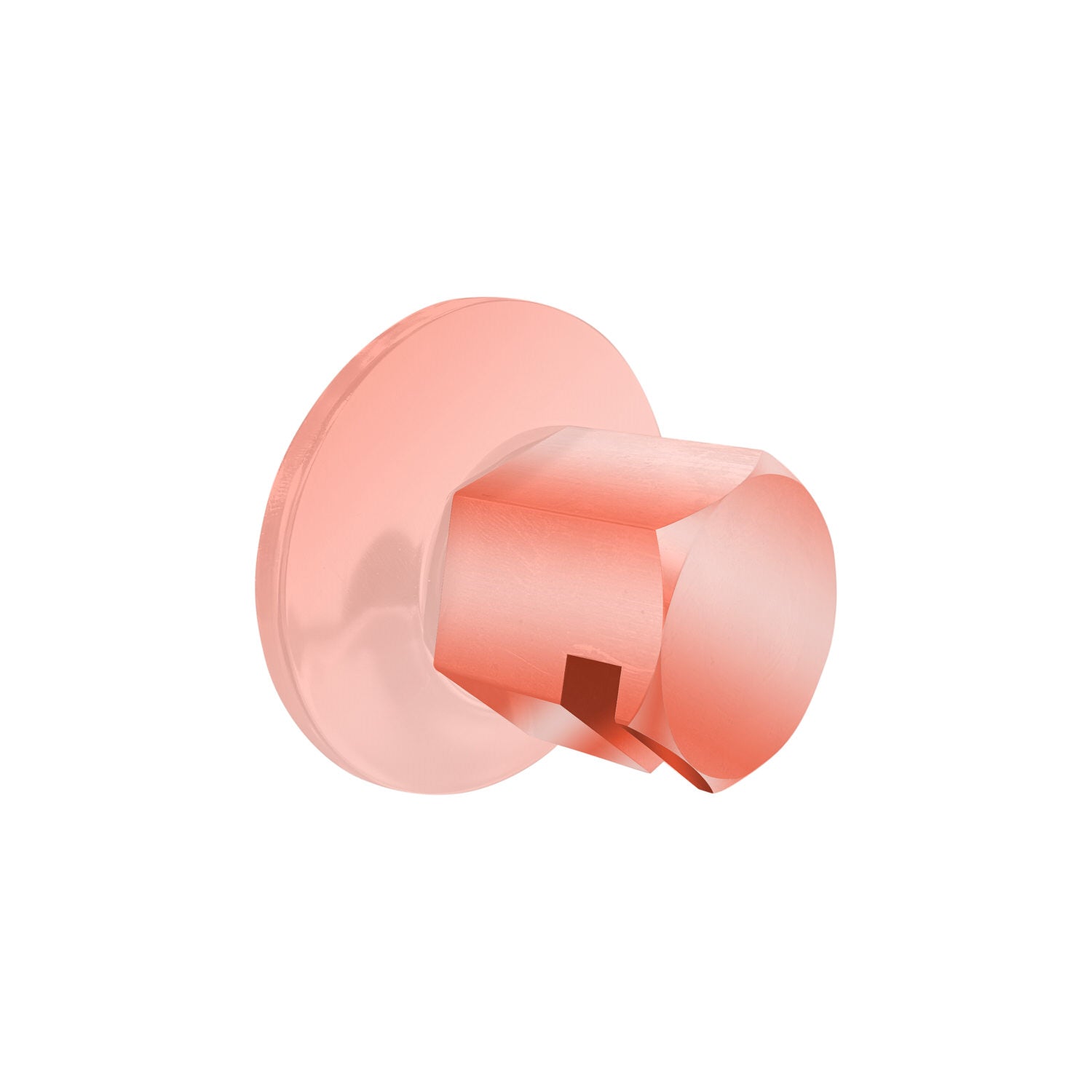

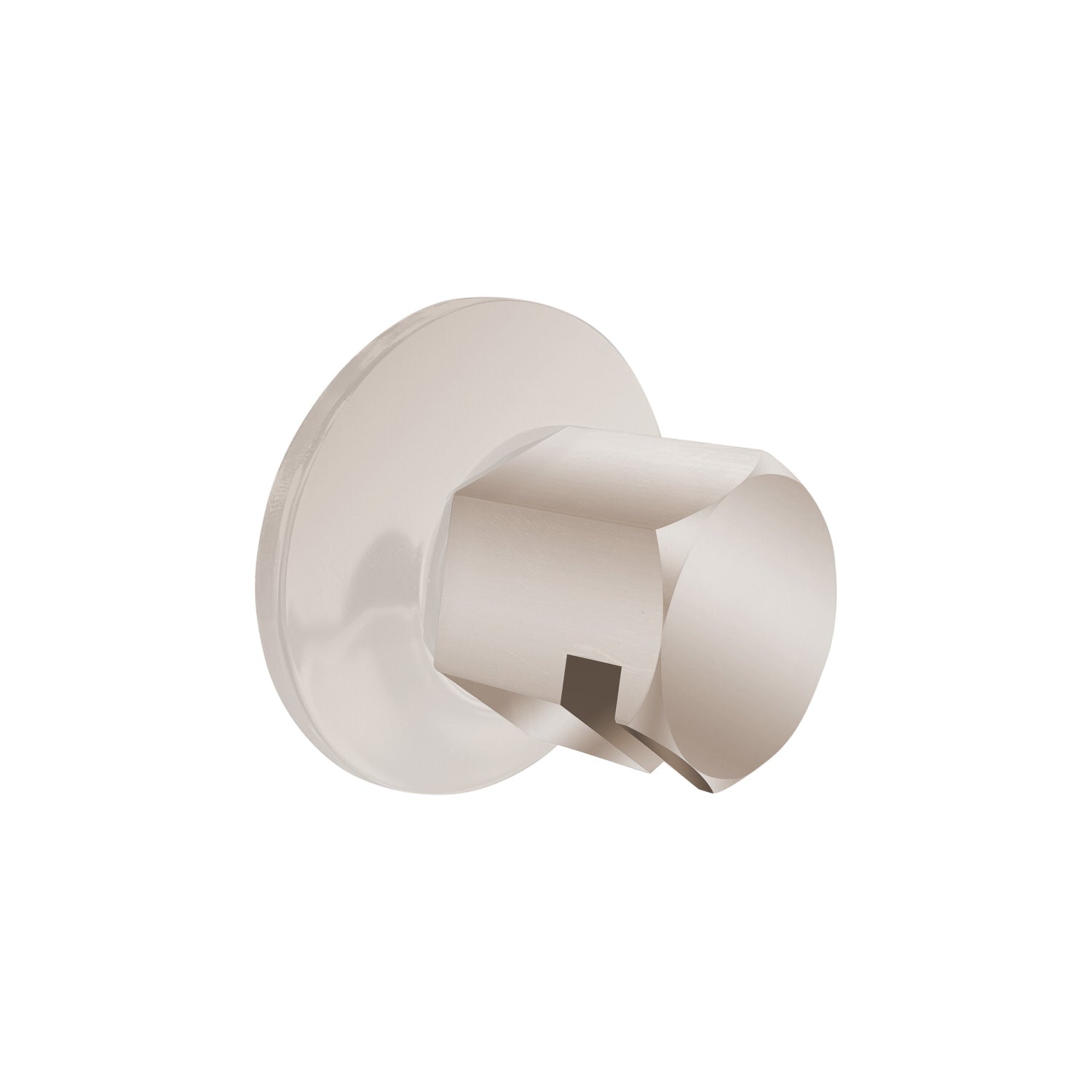

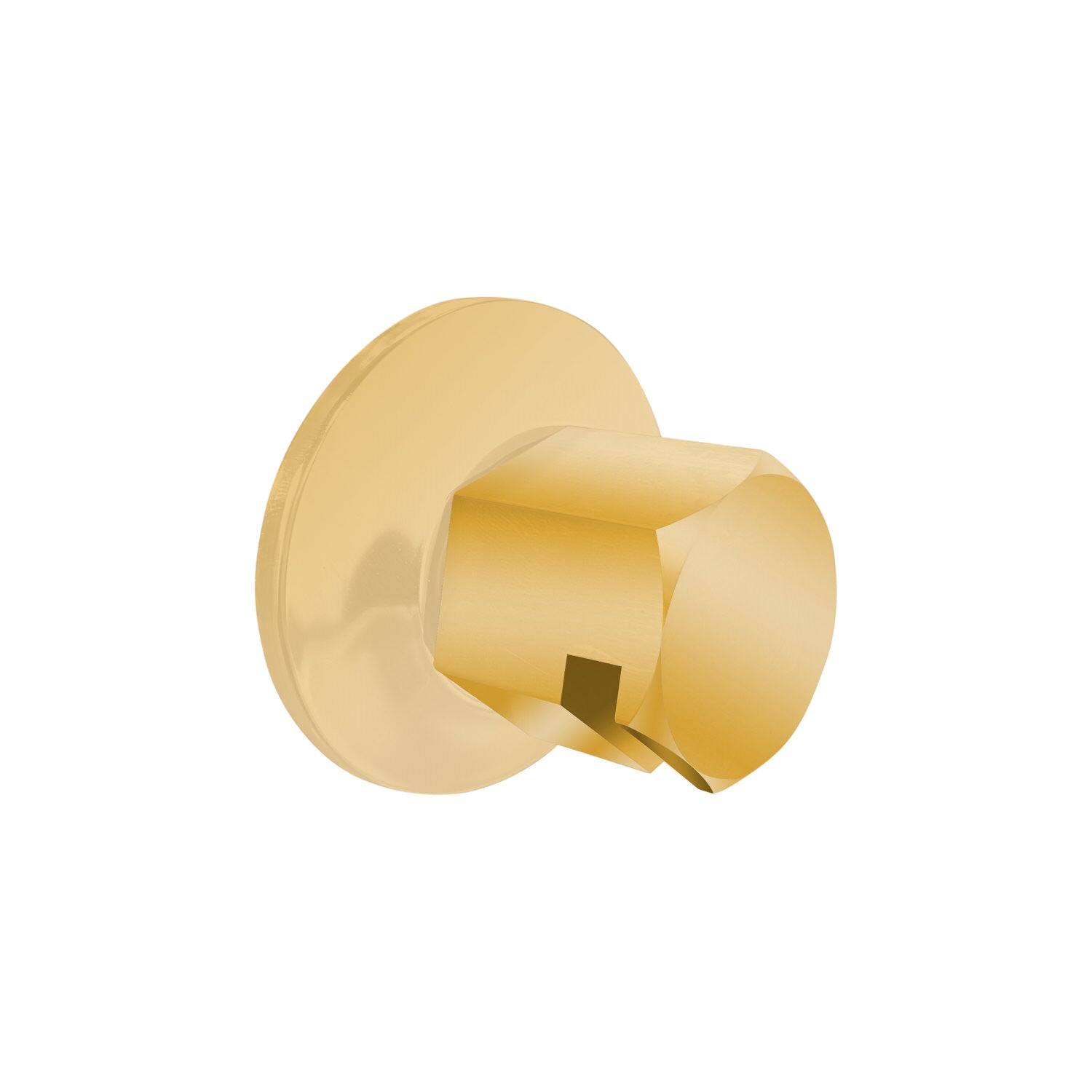

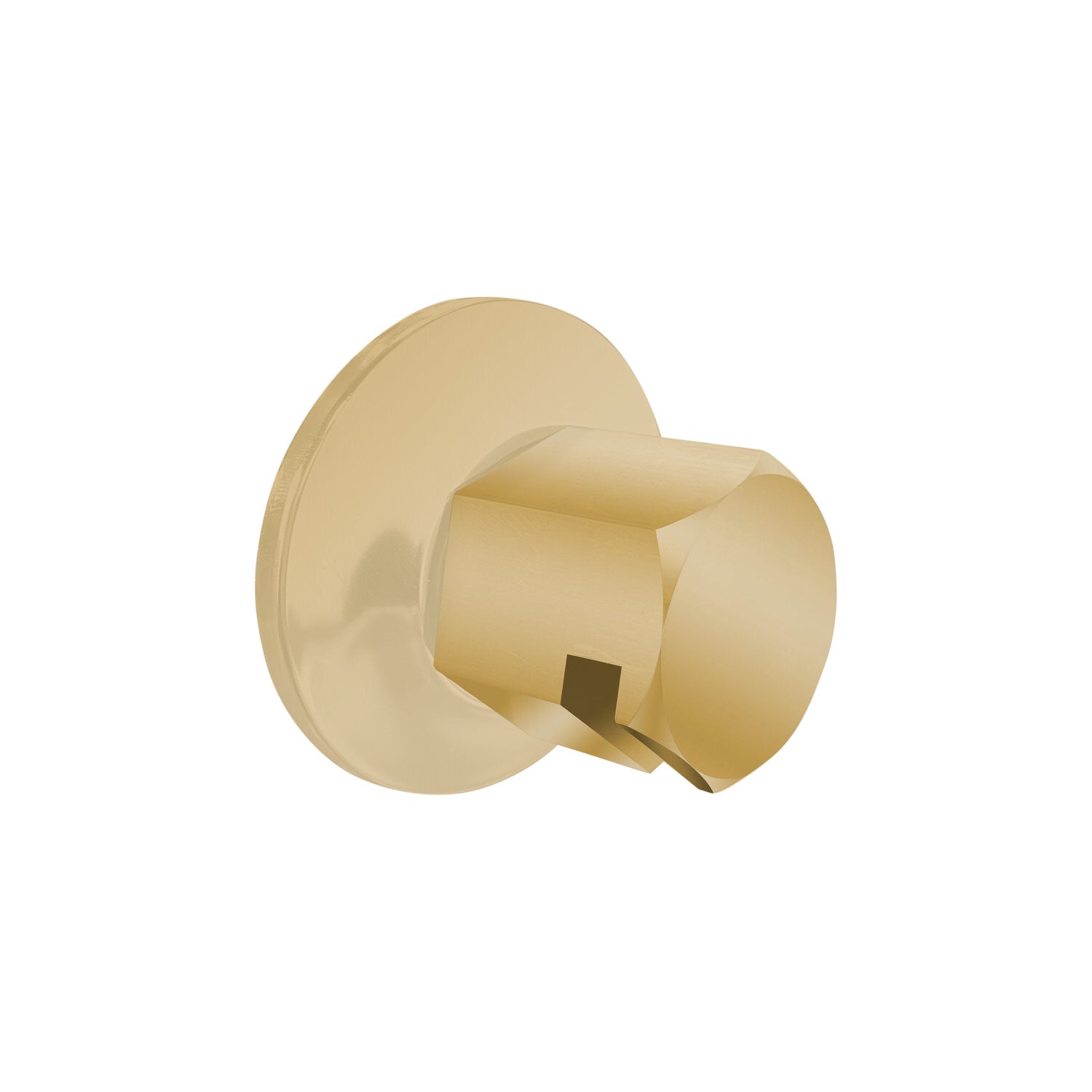

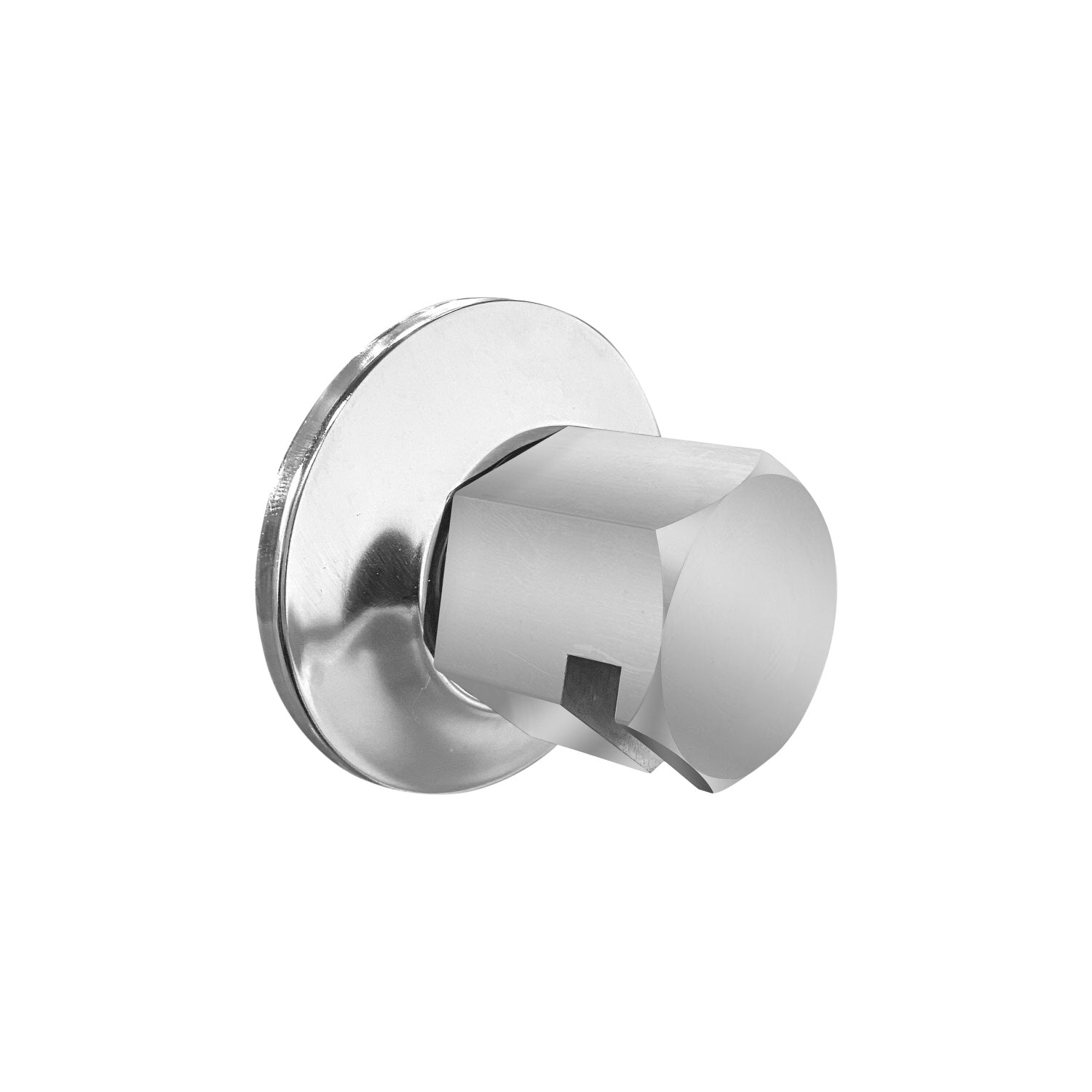

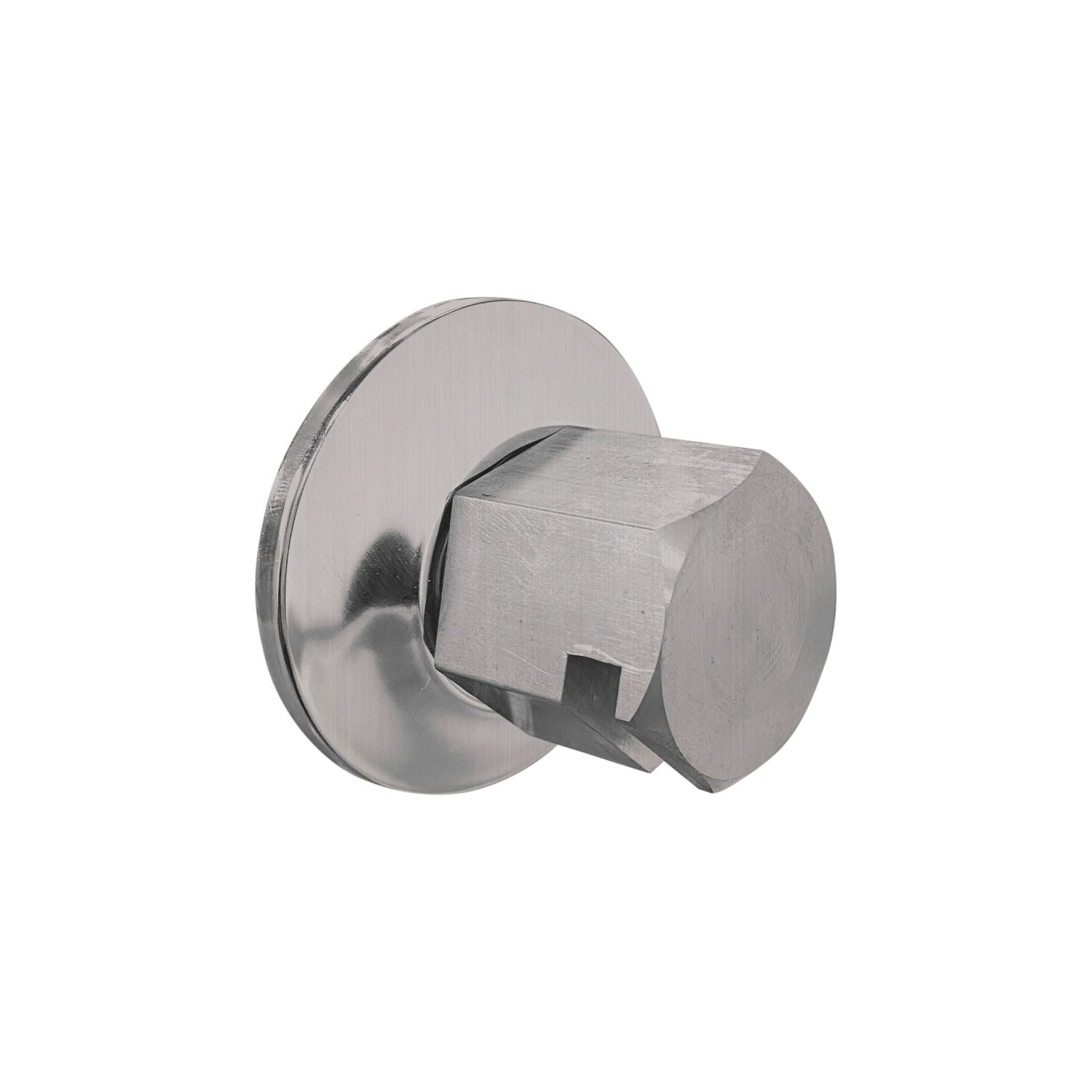

Legacy 3/4″ Steam Head

· Compatible with Thermasol PRO Series III generators, from PROIII-750 to PROIII-1200
· 1/4" NPT connection
· Compact 2.8" diameter design
· Durable escutcheon for clean, finished look
· Provides efficient, even steam output
· Engineered for long-lasting performance

· Overall Depth: 2.0"
· Connection Size: 3/4" NPT
· Front Diameter (Escutcheon): 2.8"
· Inner Face Diameter: 1.7"
· Outlet Opening: 1.5"
· Housing Kit Not Required

Shipping costs vary based on delivery location. For shipping quotes and current lead times, please contact our sales team.

Install the steam head 12 inches above the shower floor and at least 6 inches from all corners. Do not install it beneath seating or benches; avoid placing it near the controller. The outlet must be sealed to prevent vapor intrusion into the shower walls.

For the steam shower enclosure, use non-porous, moisture-resistant materials like porcelain or ceramic tile, tempered glass, and sealed grout. While natural stone is an option, it must be sealed regularly. Choose rust-resistant fixtures, and for seating, use treated, moisture-safe woods like teak.

For complete guidelines, please refer to the product manuals.
